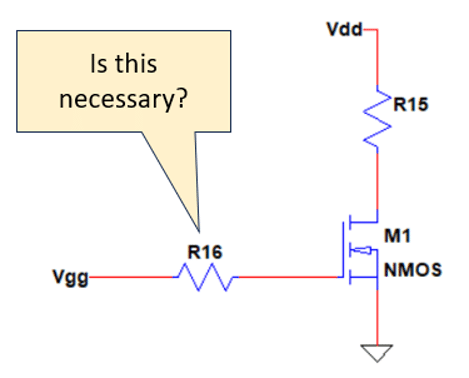

A MOSFET is a voltage-controlled device, unlike a BJT, which is primarily controlled by current. Therefore, a MOSFET generally does not require a series resistor at its gate to establish its basic operation.
In a BJT, a series resistor at the base is commonly used to control the base current, allowing the transistor to operate in the desired region, such as a switch or amplifier.
A MOSFET, on the other hand, operates based on the voltage applied between its gate and source terminals (VGS). Because the gate draws very little steady-state current, a series resistor is generally not required simply to turn the MOSFET on or off.
However, in high-power applications and high-frequency switching, a series gate resistor can be important for controlling the MOSFET’s switching behavior and protecting the driving circuit.
Why Use a Series Gate Resistor?
A series resistor can provide several important benefits:
- Limits gate inrush current. Power MOSFETs have relatively large gate capacitances. When the MOSFET is switched, the gate capacitance initially behaves like a short circuit and can cause a high transient current from the driver. A series resistor helps limit this current and reduces stress on the driving circuit.
- Controls switching speed and losses. Power MOSFETs have significant total gate charge. At high switching frequencies, repeatedly charging and discharging the gate requires considerable energy. A properly selected resistor can control the gate-drive current and help achieve an appropriate balance between switching speed and switching losses.
- Reduces unwanted high-frequency behavior. The MOSFET’s input capacitance, together with parasitic inductance in the circuit, can cause ringing, oscillation, or other unwanted behavior during fast switching. A series gate resistor can help damp these effects and improve switching stability.
How Large Should the Series Gate Resistor Be?
The value of the series gate resistor should be selected based on the requirements of the circuit. Several factors should be considered:
- Gate-drive current: The resistance should be large enough to limit the peak gate current to a safe level for the driving circuit.
- Switching losses: The resistance should not be unnecessarily large because it can slow down the MOSFET’s switching transition and increase switching losses.
- Switching speed: The resistor should be small enough to allow the MOSFET to switch within the required time. An excessively large resistance can make the switching action sluggish, resulting in slower circuit response and potentially greater power loss.
Therefore, selecting the gate resistor is a matter of finding a suitable balance between driver protection, switching speed, and power dissipation.
How to Select the Gate Resistor
The appropriate resistor value can be selected based on the design requirements, such as the desired efficiency, switching speed, power loss, and limitations of the gate driver. The MOSFET’s gate charge and the driver’s output characteristics should also be considered when determining the resistor value.
For high-frequency applications, an SMD resistor is often a practical choice because it can be placed very close to the MOSFET’s gate. Keeping the resistor and gate-drive connection short helps minimize parasitic inductance and reduces the possibility of noise and ringing.
Consider Resistor Power Dissipation
The resistor’s power dissipation rating must also be considered. The resistor should have a power rating higher than the maximum power it is expected to dissipate during operation.
For a resistor with a voltage (V) across it, the power dissipation can be calculated using:
P = V² / R
However, in a MOSFET gate circuit, the voltage and current are typically transient rather than continuous. Therefore, the resistor’s actual average power dissipation depends on the switching frequency, gate-drive voltage, gate charge, duty cycle, and the resistance value. These factors should be considered when selecting the resistor’s power rating.
Conclusion
A MOSFET does not generally require a series resistor at its gate for basic operation because it is a voltage-controlled device. However, a gate resistor can be highly useful in high-power and high-frequency applications. The resistor helps limit peak gate current, control switching speed, reduce ringing, and protect the gate driver. Its value should be carefully selected to balance switching performance and power losses. The resistor’s power rating must also be sufficient for the expected dissipation during operation.
