The BJT remains a widely used transistor for electronic switching applications. However, simply connecting a BJT to a logic signal does not automatically guarantee a reliable switch. For a BJT switch to operate properly, several important conditions must be considered. The transistor must turn on reliably, receive enough base drive to reach saturation, and turn off reliably when commanded. This BJT saturation guide for electronic switch applications covers four important considerations when designing a BJT as an electronic switch:
- Choose the correct circuit topology.
- Ensure guaranteed turn-on.
- Ensure the BJT reaches hard saturation.
- Ensure guaranteed turn-off.
Choose the Correct Circuit Topology
There are several common BJT biasing configurations, including voltage-divider bias, emitter bias, and fixed bias. For switching applications, the fixed-bias configuration is the most applicable.
A fixed-bias circuit does not have a resistor in series with the emitter. This makes the circuit relatively easy to drive into saturation. Saturation is an important characteristic for a BJT switch.
Ideally, a BJT switch behaves like this:
- ON: the collector-emitter path behaves approximately like a short circuit.
- OFF: the collector-emitter path behaves approximately like an open circuit.

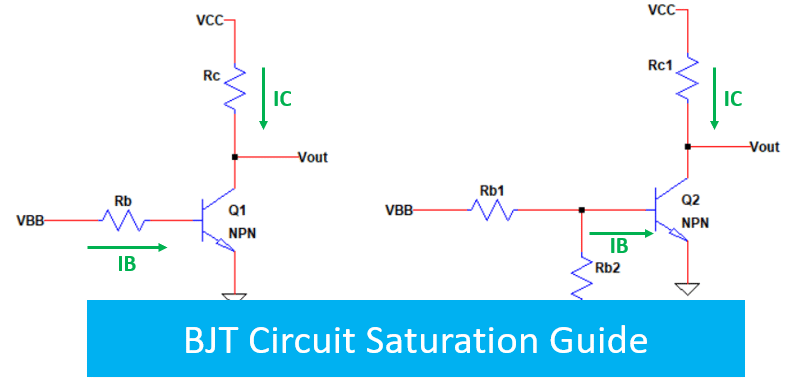

In practice, the transistor will have a finite saturation voltage when ON and a small leakage current when OFF, but these ideal states provide a useful way to understand switch operation. Below circuit illustrates a simple fixed-bias BJT circuit configuration.
There is also a variation of the fixed-bias circuit that includes a pull-down resistor at the base. The pull-down resistor affects the base voltage and therefore needs proper consideration when designing the circuit. Refer to When to Use a Pull-Down Resistor at the BJT Base.
Ensure Guaranteed Turn-On
In a simple fixed-bias circuit without a base pull-down resistor, turning on the BJT is relatively straightforward.
When the base-drive voltage, Vbb, is sufficiently higher than the BJT’s base-emitter voltage, VBE, the transistor begins to conduct. Since there is no additional base-to-ground path competing with the base-drive resistor, the basic turn-on condition is relatively simple. Most circuit designers just place a resistor in series with the base and driving Vbb with a logic signal such as 3.3 V or 5 V and that’s it. However, the situation changes when there is a pull-down resistor in the BJT base. For for detailed explanation about a pull-down resistor in the base, read When to Use a Pull-Down Resistor at the BJT Base.
Effect of the Base Pull-Down Resistor
A base pull-down resistor creates a voltage-divider effect together with the base series resistor. It is important not to select the value of this pull-down resistor too low. Otherwise, the actual voltage applied across the VBE may be affected.
A lower pull-down resistor value can make it more difficult to turn the transistor on reliably especially with a low Vbb voltage levels. Though in many practical circuits, this is not a major concern because the BJT’s VBE is only typically around 0.7 V and the Vbb level is a 3.3V or 5V from a micro controller output pin. Nevertheless, the base voltage must still be sufficient to overcome the transistor’s base-emitter junction voltage.
The important point is that the applied or start-up base-emitter voltage must be high enough to turn the BJT on. Once the base-emitter junction is forward biased, the circuit VBE follows the BJT VBE.
For a fixed-bias circuit with a base pull-down resistor, therefore, the pull-down resistor must be chosen carefully so that it provides the desired pull-down function without preventing reliable turn-on.
Ensure the BJT Reaches Hard Saturation
Turning the BJT on is not the same as driving it into saturation.
For a switching application, it is very important to drive the transistor into hard saturation. In this state, the transistor is driven strongly enough that the collector-emitter voltage becomes relatively low, allowing the BJT to behave more like a closed switch.
To achieve hard saturation, the base current must be sufficiently high. A useful rule of thumb for a simple fixed-bias circuit is:
Vcc × Rb / (Vbb × Rc) < 10
This provides a quick way to check whether the available base drive is sufficiently strong relative to the collector current requirement.
Above equation is also applicable to a fixed-bias circuit with a base pull-down resistor but there is additional check point. As a practical guideline, the pull-down resistor should be approximately 10 times Rb or higher:
Rpull-down ≥ 10 × Rb
With a sufficiently large pull-down resistor, the base-drive network is less heavily loaded, helping maintain adequate base voltage and base current when the transistor is commanded ON.
For a more detailed explanation of the hard-saturation condition, read How to Drive a Transistor into Hard Saturation.
Ensure Guaranteed Turn-Off
A reliable BJT switch must not only turn on—it must also turn off whenever the circuit commands it to do so.
When there is a command to turn off the BJT, the base-drive signal, Vbb, must provide a valid logic-low level. In particular, the base-drive node (Vbb) should not float or become high impedance when a LOW level is required.
If Vbb floats or high impedance, the BJT base is not seeing low logic level and the BJT cannot turn-off. This is where the base pull-down resistor becomes particularly useful.
A pull-down resistor provides a defined path from the BJT base to ground. If Vbb becomes floating or high impedance, the resistor pulls the base toward a logic-low level and helps ensure that the transistor turns off.
Therefore, a base pull-down resistor is especially useful when the circuit driving Vbb cannot guarantee a LOW level under all required operating conditions.
For example, if a micro-controller pin can become high impedance during reset or startup, a pull-down resistor can prevent the BJT from unintentionally remaining partially or fully ON during that period.
Conclusion
Designing a BJT as an electronic switch involves more than simply applying a logic signal to its base.
A reliable design should address four fundamental requirements:
1. Select an appropriate topology
The fixed-bias configuration is a simple and practical topology for switching because it is easy to drive it into saturation.
2. Guarantee turn-on
Make sure the base-drive network can provide sufficient VBE to turn the BJT on. If there is a base pull-down resistor, ensure that it is not so small that it significantly reduces the available base voltage.
3. Drive the BJT into hard saturation
Turning the transistor on does not necessarily mean saturation. Provide sufficient base current to drive the BJT strongly into saturation. As a quick design guideline for the fixed-bias circuit:
Vcc × Rb / (Vbb × Rc) < 10
The same equation above applies to with a base pull-down resistor but must meet the condition:
Rpull-down ≥ 10 × Rb
4. Guarantee turn-off
To turn-off a BJT circuit, the base-drive signal must provide a valid logic LOW level. If the driving node can float or become high impedance, a base pull-down resistor should be considered to ensure that the BJT is reliably pulled into cutoff.
