Why base current is important in a BJT circuit? It is because the base current is the key parameter to establish BJT operation and define the devices in the base loop electrical stress level. Unlike a MOSFET, whose operation is primarily controlled by voltage at its gate, a BJT relies on current at its base to control the current flowing through its collector.
This difference is particularly important when designing a BJT as an amplifier or as an electronic switch. The base current must be properly understood and, in many applications, carefully calculated.
What Is Base Current?
The base current, commonly represented as IB, is the current flowing into the base terminal of the BJT.
In the active region, the base current controls the collector current. A simplified relationship is:
IC = β × IB
where:
- IC is the collector current
- IB is the base current
- β is the transistor’s DC current gain
This relationship shows why base current is important: the collector current depends on the amount of base current supplied to the transistor.
However, the relationship between base current and collector current depends on the BJT’s operating region. When the transistor is used as an amplifier, it normally operates in the active region. When it is used as a switch, the design objective is generally to provide sufficient base current to drive the transistor into saturation.
Why Is Base Current Important?
There are several reasons why base current must be considered when designing a BJT circuit.
1. Base Current Controls Collector Current in the Active Region
When a BJT operates in the active region, it behaves as an amplifier. A corresponding base current is required to establish the desired collector current.
The relationship can be expressed using the transistor’s current gain:
IC = β × IB
For example, if a transistor has a current gain of 100 and the required collector current is 10 mA, the simplified calculation gives:
IB = IC / β
IB = 10 mA / 100 = 0.1 mA
Therefore, approximately 0.1 mA of base current is required under those assumed conditions.
In a real circuit, the transistor’s current gain is not a fixed value and can vary considerably with operating conditions. Therefore, the circuit should not blindly rely on a single β value when designing for guaranteed operation.
2. Base Current Is Critical When Driving a BJT Into Saturation
Base current becomes particularly important when the BJT is configured as an electronic switch.
When the transistor is used as a switch, simply providing enough base current to make the transistor conduct does not necessarily mean that it has reached saturation.
To drive the BJT into saturation, the base current must be sufficiently high relative to the collector current required by the load.
This is why switch designs often use a forced beta or forced gain that is lower than the transistor’s nominal or datasheet β. Providing additional base current gives the transistor enough drive to operate reliably in saturation.
For example, a designer may intentionally design the circuit using a forced beta of 10 rather than assuming that the transistor will always provide a gain of 100.
The basic relationship becomes:
IB ≥ IC / βforced
The important point is that the base current is not merely a parameter that determines whether the BJT turns on. It is also a major factor in determining whether the transistor can be driven strongly enough to function as a low-voltage-drop switch.
3. Base Current Must Stay Within the Transistor’s Rating
Although increasing base current can help drive a BJT into saturation, there is a limit.
The transistor has a maximum allowable base current. Exceeding this rating can overstress the base-emitter junction and potentially damage the device.
Therefore, the base current should be calculated and checked against the transistor’s datasheet limits.
A properly designed circuit should provide enough base current for the required operating condition without unnecessarily exceeding the device’s maximum rating.
This is particularly important when the base is driven directly from a voltage source or a logic output. A suitable series base resistor is normally used to limit the base current.
4. Base Current Determines the Power Dissipation at the Base-Emitter Junction
The base current is also important when calculating the power associated with the base-emitter voltage.
The power can be calculated as:
PBE = VBE × IB
where:
- PBE is the power associated with the base-emitter junction
- VBE is the base-emitter voltage
- IB is the base current
For example, if the base-emitter voltage is 0.7 V and the base current is 10 mA:
PBE = 0.7 V × 10 mA = 7 mW
This illustrates why base current is required when evaluating the electrical stress and power associated with the BJT’s base-emitter junction.
For many small-signal applications, this power is relatively small. Nevertheless, it is still part of the overall power and stress analysis of the transistor.
5. Base Current Determines the Stress on the Base Resistor
The base current is also required when evaluating the power dissipation of the base resistor.

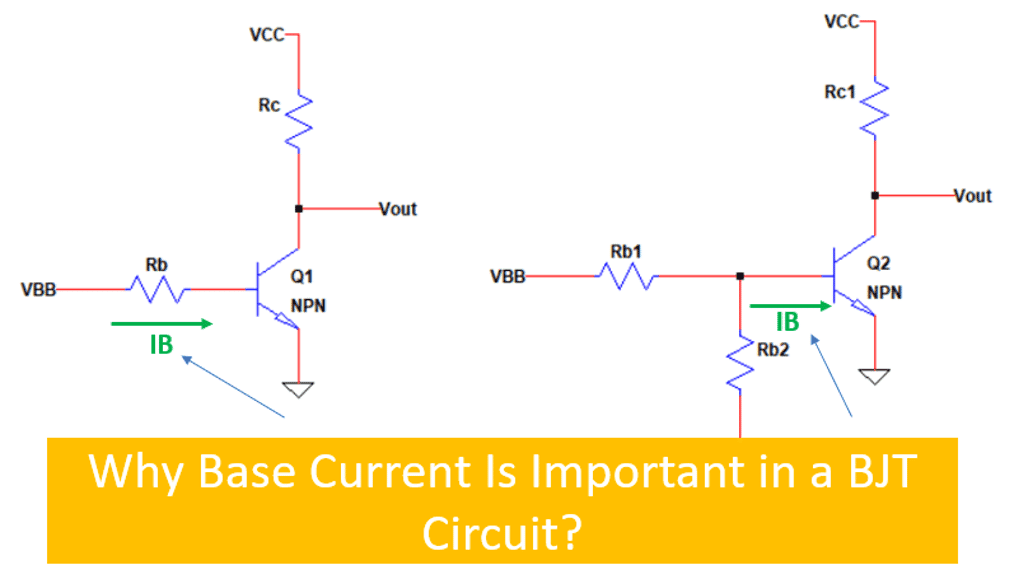

Consider a typical BJT circuit in which a resistor is connected between the driving voltage and the transistor’s base. The resistor limits the base current.
The resistor’s power dissipation can be calculated from:
PRB = IB² × RB
or equivalently:
PRB = VRB × IB
where:
- PRB is the power dissipated by the base resistor
- RB is the base resistance
- VRB is the voltage across the base resistor
- IB is the base current
Therefore, the base current is important not only for determining whether the BJT operates correctly, but also for selecting an appropriate power rating for the base resistor.
In many low-power BJT circuits, the resulting resistor dissipation is very small. However, as the base current increases, the resistor’s power dissipation also increases and should be checked during the design.
Base Current in Amplifier vs. Switch Applications
The importance of base current can be viewed differently depending on how the BJT is being used.
BJT as an Amplifier
When operating in the active region, the base current establishes the collector current according to the transistor’s current gain.
The designer is primarily concerned with establishing the desired operating point and ensuring that the transistor remains in the intended active region.
BJT as a Switch
When operating as a switch, the objective is different. The transistor should be driven strongly enough to reach saturation when ON and should be driven into cutoff when OFF.
In this case, the designer must ensure that:
- The base current is sufficient to achieve the required collector current.
- There is enough base drive to reach saturation.
- The base current does not exceed the transistor’s allowable rating.
- The base resistor can safely handle its power dissipation.
- The driving circuit can supply the required base current.
Conclusion
Base current is a fundamental parameter in BJT circuit design.
It is important because the base current:
- Controls collector current when the BJT operates in the active region.
- Provides the drive required for saturation when the BJT is used as a switch.
- Must remain within the transistor’s base-current rating to prevent excessive stress.
- Is needed to calculate base-emitter power, using the relationship between VBE and IB.
- Determines the power dissipation of the base resistor, which is important for selecting the appropriate resistor rating.
Understanding base current is therefore essential whether the BJT is being designed as an amplifier or as an electronic switch. A good BJT design does not simply ask, “Will the transistor turn on?” It also asks, “Is the base current sufficient, safe, and appropriate for the intended operating condition?”
